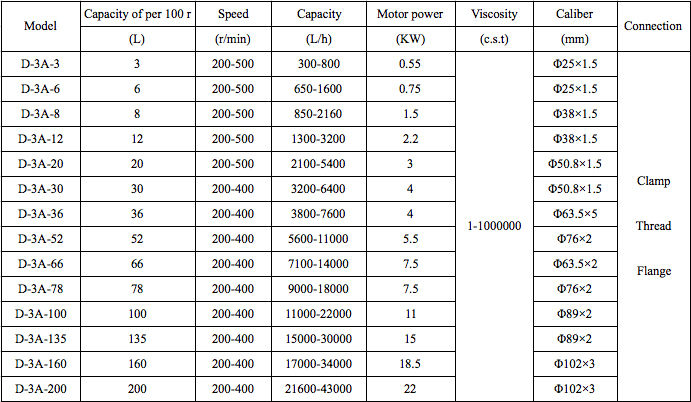

Products specifications
| Model | D-3A-6 |
|---|
| Capacity |
650-1600L/H |
| Pressure |
0~1.0Mpa |
| Caliber |
25mm(1inch)(clamp) |
| Max.permissible fluid temperature |
120°C |
| Casing parts material |
Stainless steel 304 |
| Maximum viscosity |
1X106 C.S.T |
| Package Size |
81*30*45cm |
| Package Weight |
68KG |
| Motor power |
220v/60hz/3phase/0.75KW/CVT(Continuously Variable Transmission) motor/200~500RPM |
Note: If you need pump with other specs / materials / motors / power standards(220/380/440v / 50/60hz) or customized service pls contact us directly.
Introduction:
1. Made of by stainless steel 304 or 316 which conformed to the sanitray standard.
2. Used to transfer high viscosity liquids in various industrial fields:
Foodstuff: molasses, honey, yoghourt, chocolate, tomato sauce, syrup, fruit juice, cooking oil, edible oil, vegetable oil, cheese, protein, ketchup, sesame paste, mashed garlic, peanut butter, chilli sauce, etc.
Cosmetics: facial cleanser, shampoo, toothpaste, lotions, creams, liquid soap, shower gel, hairspray, etc.
Others: medicine, fertilizer solution, ceramic glaze, paint coating, etc.
3. Pump could be customized according to customers' requirements:
Vane type: single vane, double vane type, three vane type.
Connection mode: clamp, flange, Union, etc.
Motor type: CVT(Continuously Variable Transmission) motor, variable frequency motor, gear box motor, electromagnetic adjustable-speed motor, etc.
Moveable trolley for small model pumps.
Mechanical sealing water cooling device for high temperature liquids.
Heat preservation jacket for some mdeiums which needs to be heated.
Handling time:
Send out within 15-20 days after you place the order .
Items ordered through us are shipped by DHL Fedex EMS and EUB
We will inform you with tracking No. By e-mail as soon as your order is shipped out when we get it from the express company.
A street address is needed for delivery.
Merchandise will be delivered standard Air-express door to door, which takes approximately 3-5 working days.
Delivery time does not include processing time.
Our products are shipped out every day, from Monday to Saturday, except holidays. Most orders placed on weekdays will be shipped on the same day.
To refund, you MUST return your product within 30 days upon receiving it. Refund is issued within 48-72 hours after we receiving the returned product (not the day shipped back to us).
A: Broken Product:
• Note: Proof of broken or damaged shipments must be provided in forms of photos. The returned products must be of the original package within 30 days.
B: Buyer’s Remorse:
If the product doesn't appeal you or it fails to meet your expectations, we will take it back (within 30 days of purchase) under some rules:
• The product must be unused.
• The product must be in original package and under perfect working condition.
Compared to photos in our website, the colors may vary or appear darker in the images provided. The colors may varied because we are manufacturing new products as well as new models of the existing products. Please contact us when you choose colors.
Guarantee:
We guarantee machine 100% easy use ! If the machine were damaged during delivery, please Contact us as soon as possible, mail us photo of the damaged part, we may send you a new part for you after check, and we would cover the shipping cost, we offer 12 months of free repairing warranty, if it is broken in 12 months, or we could send you the parts for replacing it by yourself and it is free of charging.
Note: This item can't be shipped to PO box address, Please ensure you left a workable phone number. The import duty and tax should be paid by importer, the sellers won't be responsible for any tax generated by the importers side.
