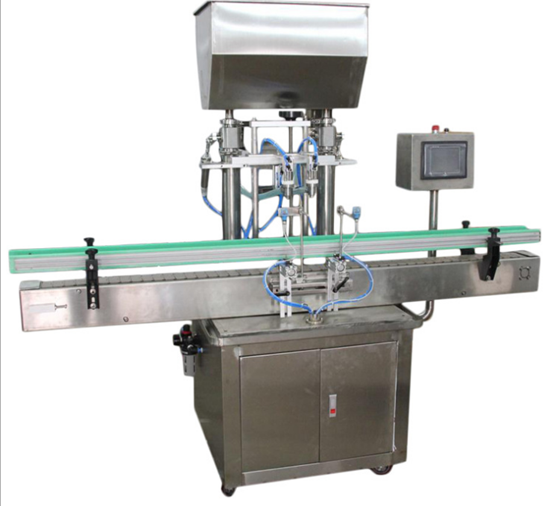

Features
Digital PLC touch screen display and setting, quality guaranteed by Taiwan brand PLC touch screen control and Airtac pneumatic components, piston type filling, full automatic operation suitable for filling line, pneumatic and electrical drive one, stable performance, simple operation, high filling accuracy;
All stainless steel machine frame, the fuselage part using 201 stainless steel, and the food grade of 304 stainless steel of material contact parts, optional 304 or 316 stainless steel; Stainless steel valve system design;
Conveyor is equipped with a fixed device, filling stability is good;
Configuration of conveyor belt 2 meters, the specification can be customized;
Filling volume, filling speed can be adjustable; bottom close positive shutoff nozzles ensure anti-drip free operations; Germany SICK photocell sensors control, no bottle no filling;
Extremely easy to clean and maintain;
Quick release nozzle and feed pipe;
Can optional the model: 10-100ml,30-300ml 50-500ml 100-1000ml 260-2600ml 500-5000ml;
One filling heads with one cylinders, attractive appearance, convenient installation and adjustment, filling head can be optional two head, four head, six head, eight head; (According to requirements)
Conform to GMP;
Application:
They are most commonly applicable for pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticides and other industrials.
Typical application: Use for filling liquid and paste material, such as mineral water, cooking oils, juice, detergent, sauce, salad, butter & margarine, ketchup, jams, cream, honey, shampoos etc.
Suitable for various packing such as bottle, jar, can, etc.
Note:
1. we can customize the special size according to customer's demands.
2.The machine disposition can make the choice.
Parameters
| Filling range | 20-200ml,50-500ml,100-1000ml,260-2600ml,500-5000ml |
|---|
| filling head |
two |
| Control mode |
pneumatic and electrical |
| Air pressure range |
0.5~0.7mpa |
| Filling speed |
5-60pcs/min |
| Filling preciscion |
≤±1% |
| power |
500w |
| voltage |
220v/50Hz or 110v/60Hz(Optional) |
| Dimension |
1.65*1.15*1.6m |
| weight |
310kg |
Terms:
1) Original: made in China;
2) Package: Standard export wooden cases;
3) Loading port: Ningbo;
4) Payment terms: 100% by T/T(30% deposit in the factory and 70% blance by T/T before shipment.)
5) Delivery time: within 30 days after received the advance payment;
6) Validity: this offer is valid in 15-30 days from the offered date;
7) Manual in English;
Packaging & Shipping
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex- factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case
Packaging details:
Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety;
Shipping methods: Shipping by sea(recommend big product or a lot of goods of the order)
