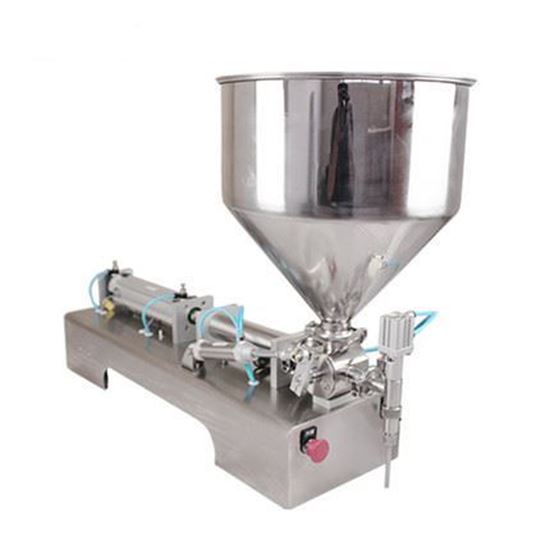

Single head liquid & paste piston filler

Notes: This paste bottling machine is for paste and liquid filling. it can fill the water, juice, butter and honey.
*
$859.00

Products specifications

ModelF-G1
Application  for paste and liquid filling.it can fill the water,juice, butter and honey
Automatic Grade Semi-automatic
Driven Type Pneumatic
Air pressure range 4-6kg/cm2
Capacity 0-30 bottles per minute

Principle

Semi-automatic Single head pneumatic water bottling machine piston filler. Driven by a cylinder and piston made from materials with one-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume

  • Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
  • materials are used 304 stainless steel materials, in line with the GMP requirements
  • Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.

and is suitable for bottle drum and more

The water bottling machine adopts pneumatic working principle, simple operation, high filling precision, is a certain concentration or certain size granular materials ideal filling equipment. and it need the air compressor,pls choose the  0.4-0.8MPa

Feature

  1. 30 bottles/min (depending on operator speed, product density, draw length, a fill speed, among others)
  2. Suitable to fill low to high-density liquids (0 – 10,000 cps)
  3. All Parts in Contact with Product are Food Grade (SS 304)
  4. Stainless Steel Construction
  5. Rugged Rotary Valve System Design
  6. Pneumatic Operation
  7. Silica gel O-ring System(can bear 200 Celsius degree)
  8. Piston Feed Speed Adjustment
  9. No-drip Option Included and Installed
  10. Extremely Accurate (+/- 1%)
  11. Extremely Easy to Clean and Maintain
  12. Sanitary Stainless Steel Quick Disconnect Fittings
  13. Extremely Easy to Operate
  14. Quick Connect/Disconnect Pneumatic Fittings.
  15. has good acid and alkali resistance,corrosion resistance
  16. full Pneumatic,no electric

now we supply to customers the full Pneumatic filling machine ( no electricity),it is Explosion-proof model, and it is more safe. we use the authentic AirTAC parts.

We have these nozzles in available:

2.5mm,3mm,4mm,6mm,8mm,10mm,12mm. (10-150ml,30-300ml,50-600ml,100-1200ml)filling machine

12mm,15mm,20mm,25mm,28mm. (260-2600ml,500-5000ml)filling machine.

Normally if you choose the 10-150ml,30-300ml,50-600ml,100-1200ml,we wil lsend you the 12mm nozzle, and if you choose the 260-2600ml,500-5000ml,we will send you the 28mm nozzle,

if you want the different size nozzle, pls contact with me :chelseaouri AT gmail.com

Pls leave us what do you want to fill ? And what is your filling voluem?

And if your particle is bigger than 5mm,pls contact with us, we will change the rotary valve to bigger ones, and will change the filling head and filling nozzle to bigger ones.

And if you fill the corrosive stuff we will ship you the teflon seal ring part, pls contact with me .

Shipping

Handling time:

Send out within 2-3 days after you place the order .

Items ordered through us are shipped by DHL Fedex EMS and EUB

We will inform you with tracking No. By e-mail as soon as your order is shipped out when we get it from the express company.

A street address is needed for delivery.

Merchandise will be delivered standard Air-express door to door, which takes approximately 3-5 working days.

Delivery time does not include processing time.

Our products are shipped out every day, from Monday to Saturday, except holidays. Most orders placed on weekdays will be shipped on the same day.


To refund, you MUST return your product within 30 days upon receiving it. Refund is issued within 48-72 hours after we receiving the returned product (not the day shipped back to us).

A: Broken Product:
• Note: Proof of broken or damaged shipments must be provided  in forms of photos. The returned products must be of the original package within 30 days.
B: Buyer’s Remorse:
If the product doesn't appeal you or it fails to meet your expectations, we will take it back (within 30 days of purchase) under some rules:
• The product must be unused.
• The product must be in original package and under perfect working condition.

Compared to photos in our website, the colors may vary or appear darker in the images provided. The colors may varied because we are manufacturing new products as well as new models of the existing products. Please contact us when you choose colors.

Guarantee:

We guarantee machine 100% easy use ! If the machine were damaged during delivery, please Contact us as soon as possible, mail us photo of the damaged part, we may send you a new part for you after check, and we would cover the shipping cost, we offer 12 months of free repairing warranty, if it is broken in 12 months, or we could send you the parts for replacing it by yourself and it is free of charging.



Note: This item can't be shipped to PO box address, Please ensure you left a workable phone number. The import duty and tax should be paid by importer, the sellers won't be responsible for any tax generated by the importers side.
