Products specifications
Model | F-SG1 |
Filling speed |
10~30 pcs/min |
Filling Precision |
≤±1% |
Driven Type |
pneumatic |
Dimensions |
35*35*102cm |
the stand |
98*30*31cm |
N.W. |
55KG |
Principle

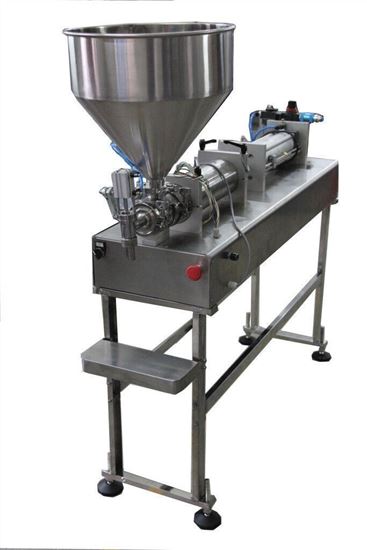

Semi-automatic Single head pneumatic water bottling machine piston filler. Driven by a cylinder and piston made from materials with one-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume
- Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
- materials are used 304 stainless steel materials, in line with the GMP requirements
- Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.
and is suitable for bottle drum and more
The water bottling machine adopts pneumatic working principle, simple operation, high filling precision, is a certain concentration or certain size granular materials ideal filling equipment. and it need the air compressor,pls choose the 0.4-0.8MPa
Features
1. Adopts the Taiwan Airtac pneumatic components,simple operation,high filling precision;
2. Adopt 304 and 316 stainless steel construction;Stainless steel valve system design;
3. Can be operated by foot pedal or by automatic timer,could transfer between semi-automatic and automatic;
4. Quick release nozzle and feed pipe.
5. non-drip filling nozzle
6. has good acid and alkali resistance,corrosion resistance
Now we supply to customers the full Pneumatic water filling machine ( no electric), it is Explosion-proof model, and it is more safe. we use the authentic AirTAC parts.
- Silica gel O-ring System(can bear 200 Celsius degree)
- Piston Feed Speed Adjustment
- No-drip Option Included and Installed
- Extremely Accurate (+/- 1%)
- Extremely Easy to Clean and Maintain
- Sanitary Stainless Steel Quick Disconnect Fittings
- Extremely Easy to Operate
- Quick Connect/Disconnect Pneumatic Fittings.
- has good acid and alkali resistance,corrosion resistance
- full Pneumatic,no electric
now we supply to customers the full Pneumatic filling machine ( no electricity),it is Explosion-proof model, and it is more safe. we use the authentic AirTAC parts.
We have these nozzles in available:
3mm,4mm,6mm,8mm,10mm,12mm. (15-150ml,30-300ml,50-500ml,100-1000ml)filling machine
12mm,15mm,20mm,22mm,25mm,28mm. (300-2600ml,500-3500ml,1000-5000ml)filling machine.
Normally if you choose the 15-150ml,30-300ml,50-500ml,100-1000ml,we wil lsend you the 12mm nozzle, and if you choose the 300-2600ml,500-3500ml,1000-5000ml we will send you the 28mm nozzle,
if you want the different size nozzle, pls contact with me :chelseaouri AT gmail.com
Pls leave us what do you want to fill ? And what is your filling voluem?
And if your particle is bigger than 5mm,pls contact with us, we will change the rotary valve to bigger ones, and will change the filling head and filling nozzle to bigger ones.
And if you fill the corrosive stuff we will ship you the teflon seal ring part, pls contact with me .
