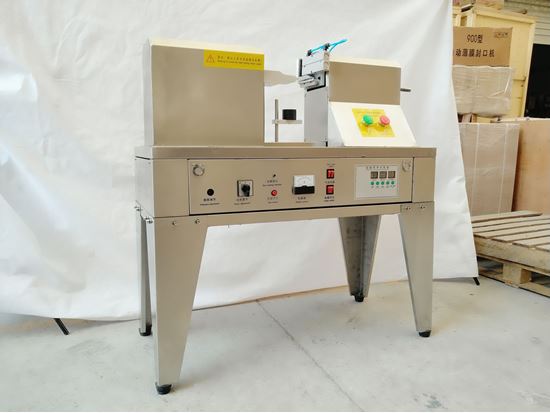

Ultrasonic Plastic Tube Sealing Machine with Cutting Printing function

Be the first to review this product

Voltage *

220V 50Hz
110V 60Hz

$1,399.00

Qty:

Products specifications

Voltage	AC220V/50Hz or 110V(pls inform us)
Power	1200w
Operating frequency	20KHz
Sealing diameter	5-80mm (can be customized)
Working height	0-300mm (can be customized)
Working capacity	about 10-20times / min
Working stroke	70mm
Dimensions	1100 * 460 * 450mm
Total weight	85kg

Introduction:

Ultrasonic plastic tube sealing machine is suitable for toothpaste, cosmetics, medicines, food industrial supply etc. With horizontal aluminum alloy structure, stainless steel package, environment friendly and sanitation.With independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance, high efficiency.

Utilizing the energy produced by c high speed vibration imposed on the tube and act on plastic tube in order heat the plastic tube rapidly and welding , under pneumatic mechanical pressure, forming the sealing the sealing patterns of to head mould foot mould while removal of excess material to reach good effect at last.

Features:

1.Two dimensional adjustment of work piece platform, it is easy to operate.

2.It adopts Taiwan cassette mechanism and circuit Lines, using famous brand of Ultrasonic parts.

3.Overload protection, phase separation protection, power-fail protection.

4.Large Ultrasonic Out put power to ensure the sealing quality of various specifications of tube.

5.It can sealing soft tube also can printing date and cutting
